Koi Pond Mechanical Filter systems -  Rotary Drum Filters, Sieves and Vortexes

At Koi Water Garden, we are able to offer competitive prices on not only high quality Koi, but also on Koi related goods such as the very best in Pre-filters such as Rotary Drum filters and pre-filter sieves.



last updated 10th August 2017

Shop online with confidence via our secure on-line shop.
We accept all major credit cards!

Review your Shopping Cart - click below.


See Also:--





How to choose the right filter



Special package prices



Interested in any Filter + pump, + UV and Air pump ? Special package prices are available - the more you buy the better the component prices become! Ring or email for package prices.



Rotary Drum Filters



Drum filtration has been in use for many years, both by the municipal water industry and the commercial fish farming industry as well as for other industrial applications.



Only in the last four or five years however have units begun to be designed and marketed specifically for the Koi market.



Drum filters represent the most amazing , truly efficient and effective maintenance free mechanical filters ever conceived.



Essentially they trap solids down to micron size, as low as 60 microns, preventing dirt and detritus from entering the biological filter and help to produce amazingly clear water. As the filter screens inside the drum get dirty the electronics inside recognise this and start an automatic wash cycle without any intervention whatsoever.



Incoming pond water passes through to the inside of the large drum which has stainless steel screens enclosing the drum - so the incoming water must pass through the screens on its way to the next stage of the filter. As it does so, all the dirt is left on the screen. As and when the screens starts to get blocked, a wash cycle is started and high pressure water jets wash off the screen from the outside, washing all the accumulated dirt into a special trap inside the drum, where it is led to waste. The drum and screens also rotate to ensure complete and precise washing of the screen at each cleaning cycle. The wash process is completely automatic, but can also be manually controlled, and with some models set to wash at specific time intervals as well.



AEM Easy Drum



The brand new Easy drum filter is the latest of the budget drum filters now available. designed as a pre-filter for Koi ponds and will handle ponds of up to 9,000 gallons or more. It features - Individual, exchangeable, screen elements of 70 micron - Max. flow 20m³/h, injection moulded housing made of HDPE, Suited for both pump fed and gravity fed operation, 40 watt integral Amalgam UVC included, 2 x 110mm inlet, 1 x 110mm outlet and small footprint - Size (L x W x H): 79 x 48 x 54cm. And all for less than £1000!



The AEM Dum Filter is supplied with a professional, software based controller , high pressure cleaning pump to clean the filter as part of the automated backwash cycle and Amalgam 40 watt UV. The AEM Easy Drum Filter has a low installation height of just 12cm above the water level and is a perfect solution for those wishing to install an affordable drum filter.
The drum filter has two 110mm Inlet connections and one 110mm outlet connections for connecting multiple pumps or for gravity exit into a bio chamber.

The Easy Drum Filter product Features:-



Input: 2 x inlets 110mm

Outlet:1 x outlet 110mm

110 mm Waste outlet

Max flow rate 4400 gph (20000 lph) gravity 3000 gph (13500 lph) Pumped

Used materials: PA, stainles steel / 316, FPM seal, high pressure PVC, silicone seal

 Max flow: 20m3

 Drum Diameter: 38 x 40 cm

Gearbox: 27Nm ,Slip clutch

Screen elements: 70 micron stainless steel 316  Flat jet nozzles

Control box IP 44 min.

control on Manual control push button

Spray bar: high-pressure PVC

40bar high pressure cleaning pump

Lid

All components:

modular and quickly changeable

Body dimensions: 79 x 48 x 54cm (total length 79cm incl. waste collector)

CE compliant

2 year warranty on all parts (ex. screen elements)

Incl. Amalgaan 40watt UVC lamp

- hours counter

- replace message

- CE approval UVC/Drum bodySize:



AEM Easy Drum Filter

Compact size but with huge performance, the AEM Drum filter is available as a gravity or pumped unit, will handle flows of up to 4400 gallons per hr (20 cu m per hr) for the gravity model and is complete with a 40 watt Amalgam UV!







Size Price
Aquaforte Drum Filter Gravity £999.00
Aquaforte Drum Filter Pumped £999.00









Above: Controller for AEM Drum Filter











Aquaforte Rotary Drum Filters



The brand new Aquaforte Drum filter isdesigned as a pre-filter for larger ponds and will easily handle ponds of up to 12,000 gallons or more. It features - Individual, exchangeable, screen elements of 60 micron - Max. flow 25m³/h, injection moulded housing made of HDPE, 48VDC motor, Suited for both pump fed and gravity fed operation, 3 x 110mm inlet, 2 x 110mm outlet and tiny footprint - Size (L x W x H): 47 x 57 x 43 cm. Size incl. connections and motor: 50 x 70 x 43cm. But the best thing is the price!



The Aquaforte Dum Filter is supplied with a professional, software based controller and it will clean either using mains water pressure (simply connect a hose pipe) or an optionally available pressure pump (recommended) to clean the filter as part of the automated backwash cycle. The Aquaforte Drum Filter has a low installation height of just 10cm above the water level and is a perfect solution for those wishing to install an affordable drum filter.
The drum filter has two 110mm Inlet connections and two 110mm outlet connections for connecting multiple pumps or for gravity exit into a bio chamber. The waste outlet is is also 110mm in size.
The Aqua Forte Drum Filter can accomodate flow rates up to 25m³/h (5500 gallons per hour), and the controller with it's custom software contains many safety options and funtions including motor slow start, motor amp protection, manual cleaning button and standard hourly cleaning etc.

Aqua Forte Drum Filter product Features:
- Extra Low Installation Height - 10cm above water level
- Individual, exchangeable Screen elements of 60 microns
- Max flow 25m³/h
- Controller with custom software including many safety options like Motor Slow Start, Motor Amp Protection, manual cleaning button and standard hourly cleaning etc.
 - Injection moulded housing made of HDPE, white parts made of POM (polyoxymethylene, a hard and strong polymer).
- 48v DC Motor
- Suited for pump and gravity fed operation (inlet and suited for pump fed and gravity fed operation (inlet chamber and drum chamber are both fitted with a mounting bracker for the float switch). Float switch can be easily adjusted in height.
- 3 x Ø110mm inlets, 2 x Ø110mm outlets
- Ø50mm conections in inlet chamber and drum chamber in the top and the bottom.
- Centered position for a 40 watt submersible amalgam lamp (just drill a hole for the tank connector at the centered spot)
- Only 1 cable from controller to drumfilter (this will divide into 3 cables: motor, float switch and cover switch)
- Fitted with cover switch (cuts the power off to the motor, cleaning pump and UV-C unit for safety). Size:
(L x B x H): 47 x 57 x 43 cm. Size incl. connections and motor: 50 x 70 x 43cm.



Aquaforte Drum Filter

Amazingly small size but with huge performance, the Aquaforte Drum filter is interchangeable as a gravity or pumped unit, will handle flows of up to 5500 gallons per hr (25 cu m per hr) and is made to house a submersible UV if required!



Size Price
Aquaforte Drum Filter £1347.00
Clear lid for drum filter £125.00
High Pressure cleaning pump £229.00










Oase Rotary Drum Filters

There are now three models in the Oase range, the largest, the Profi Drum is designed as a pre-filter for larger ponds and will easily handle ponds of up to 12,000 gallons or more. The Biotec Premium is a self contained filter system featuring biological as well as mechanical filtration and is designed as a complete filter system for smaller ponds. The Proficlear Premium Compact Drum is the latest in the Oase range and is designed as a complete filter system for small to medium sized ponds and features the Helix biological moving bed media technology. With this model the volume of biological media can be increased to match the fish population. Both the smaller (Biotec Premium and compact) drum filters can still of course be used as Pre-filters only, and installed in this way they will manage larger ponds with ease.



Oase Rotary Drum Filter



Above: Profi Drum filter with lid removed and working at our premises. We now have four of these units fitted to four separate ponds at our premises, including our main stock pond of 6,500 gallons and or largest 9000 gallon pond



Above: Profi Drum filter cut away



We have decided to market the Oase Drum filter range unit for a number of important reasons:-



  • Most effective filter performance with flow rates of up to - 25 m³ (5500 galls) for Profi Drum, and 16.5 m³ (2750 galls) for other models - per hour for crystal clear water.
  • Unique, completely automatic self cleaning offers minimal maintenance.
  • Flexible use, ideal for gravity or pump fed systems
  • High quality product, developed to a high standard in Germany.
  • Extensive VDEP tested, certified safe function.
  • A micro control system oversees and operates the main functions and is easy to use.
  • 3 Year warranty! The only drum filter on the market offering this level of support
  • Small footprint, compact design
  • Most cost effective drum filter available for Koi pond applications - less than half the cost of some competing units!
  • Very flexible in use - 4 x 110mm inlets and 2 x 150mm outlets (Profi Drum Variants).
  • Segmented screen sections allow easy cleaning or replacement of individual elements without removing the drum.
  • Produced by one of the worlds largest and most reputable Auqatics companies who offer unrivalled levels of customer aftercare and support





Drum Filter connected to Nexus



Above: Profi drum filter coupled to a Nexus 210 at our premises. Since incorporating this drum filter in April 2012 - we have not needed to clean our Nexus AT ALL !



 Specification. Profi Drum



 Width in mm 830

 length in mm 600

 Height in mm 820

 Power consumption in Watts 5

 Power consumption cleaning in Watts 1050

 Cable length in m 2,00 + 5,00

 Net weight in kg 70kg

 Guarantee 2 + 1 years

 Control unit Microcontroller

 Temperature indicator Yes

 Coarse debris to 60µM

 Number of nozzles 4

 Cleaning flow rate 2.5 l/min

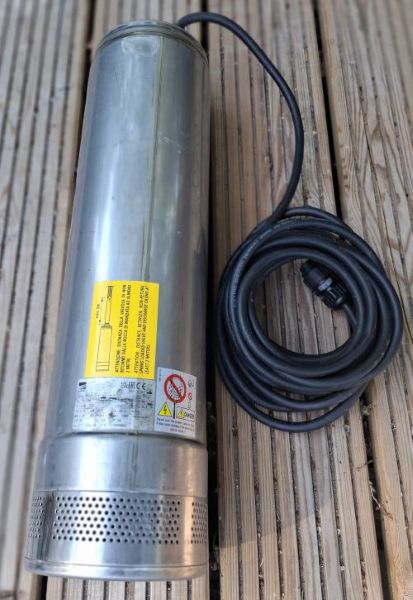

 Waste pump Ebara 6 bar

 Automatic purging by:   sensor, time interval, manual

 Drum diameter in mm 516

 Basket width in mm 370

 Number of sieve elements (unit) 8

 Filter intake surface in cm² 4200

Material GRP thermoset/stainless steel

 Number of inlets 4 (Gravity), 2 (Pumped)

 Connections, inlet DN110 (gravity) 50mm (Pumped)

 Number of outlets 2

 Connections, outlet DN 150

 Connections, sludge discharge N 70, DN 110

 Max Flow rate, 33,000 lph (Gravity) 25,000 lph (Pumped)

 Installation height over water level in cm 13

 Possible water-level difference in cm 10



Profi Drum Video

 Specification. Proficlear Compact



 Width in mm 885

 length in mm 685

 Height in mm 820

 Power consumption in Watts 5

 Power consumption cleaning in Watts 870

 Cable length in m 10m

 Net weight in kg 70kg

 Guarantee 2 + 1 years

 Control unit Microcontroller

 Temperature indicator Yes

 Coarse debris to 80µM

 Number of nozzles 2

 Cleaning flow rate 3.5 l/min

 Waste pump Ebara 4 bar

 Automatic purging by:   sensor, time interval, manual

 Number of sieve elements (unit) 4

 Filter intake surface in cm² 3820

 Material GRP thermoset/stainless steel

 Number of inlets 2 (Gravity), 2 (Pumped)

 Connections, inlet DN110 (gravity) 50mm (Pumped)

 Number of outlets 2

 Connections, outlet DN 110

 Connections, sludge discharge N 75, DN 110

 Max Flow rate, 16,500 lph (Gravity) 12,500 lph (Pumped)

 Installation height over water level in cm 13 (gravity) 32cm (Pumped)

 Possible water-level difference in cm 10



Proficlear Compact Video







Drum Filter Controller



Above: Drum filter controller







Above: Pump Guard, Auto top up system. To automatically keep the pond topped up to the correct level especially when drum filters are installed as part of the filter system.

 Specification. Biotec Premium



 Width in mm 885

 length in mm 685

 Height in mm 820

 Power consumption in Watts 5

 Power consumption cleaning in Watts 870

 Cable length in m 6

 Net weight in kg 70kg

 Guarantee 2 + 1 years

 Control unit Microcontroller

 Temperature indicator Yes

 Coarse debris to 150µM

 Number of nozzles 1

 Cleaning flow rate 4 l/min

 Waste pump Ebara 4 bar

 Automatic purging by:   sensor, time interval, manual

 Number of sieve elements (unit) 4

 Filter intake surface in cm² 3820

 Material GRP thermoset/stainless steel

 Number of inlets 2 (Pumped)

 Connections, inlet 50mm (Pumped)

 Number of outlets 1

 Connections, outlet DN 110

 Connections, sludge discharge N 70, DN 110

 Max Flow rate, 12,500 lph (Pumped)

 Installation height over water level in cm 13

 Possible water-level difference in cm 10



Biotec Premium Video

Above: Biotec Premium Drum Filter

Above: Biotec Premium Drum Filter cutaway





 To keep the drum filter operating at its most efficient, clean the sieve elements once per year with Oase pump clean, which has been specially formulated to remove limescale and other contaminants from metal and plastic surfaces to keep them free of contamination caused by limescale build up. Also great for cleaning pump impellors.In very hard water areas it may be advisable to carry out this cleaning process more regularly. To clean any item, dilute the pumpclean in a suitable sized container as recommended and immerse the sieve/pump for 24 hours to remove all traces of contamination.

Type Price
Biotec Premium 8000 Drum Pumped £1,899.99
Proficlear Compact Drum Gravity £1,999.99
Proficlear Compact Drum Pumped £1,999.99
Profi Drum Gravity £2,899.99
Profi Drum Pumped £2,899.99
Pump Guard £339.00
Sieves, set of 8 - Profi Drum £207.50
Sieves, (6) 125 Micron - Compact and Biotec Premium £147.50
Sieves,(6) 80 Micron - Compact and Biotec Premium £167.50
Sieves, (6) 60 Micron - Compact and Biotec Premium £187.50
Pump Clean 500ml £13.95

Above: Proficlear Premium Compact Drum.





Above: Spare sieve element for Profi Drum.





Above: Pump Clean liquid.

Small Universal Vortex

Free standing small Vortex - Fibreglass with 1.5" drain, 4" inlet and 4" outlet which can be fitted in any position to suit the installation. Made for Pressure pipe fittings but can be used with solvent weld waste with appropriate pipe adaptors (not included) Dia 61cm & H78cm





Size Price
61cm dia x 78cm high £245.00
Delivery costs from £19.50 depending on Postcode
 Small Universal Vortex

Medium Universal Vortex

Free standing medium Vortex - Fibreglass with 2" drain, 4" inlet and 4" outlet which can be fitted in any position to suit the installation. Made for Pressure pipe fittings but can be used with solvent weld waste with appropriate pipe adaptors (not included) Dia 70cm & H94cm.





Size Price
70cm dia x 94cm high £295.00
Delivery costs from £19.50 depending on Postcode
 Medium Universal Vortex

Large Vortex

Large Vortex Free standing large Vortex - Fibreglass with 1.5" drain, 4" inlet and 4" outlet.. Made for solvent weld waste pipe fittings but can be used with pressure pipe with appropriate pipe adaptors (not included) Dia 90cm & H120cm.





Size Price
90cm dia x 120cm high £365.00
Delivery costs from £29.50 depending on Postcode
 Large Vortex

Cetus Pre-Filter sieve

The Cetus pond sieve is a very efficient mechanical filter which can be fitted directly to a bottom drain or to a skimmer. It can be pump or gravity fed and incorporates a patented floating weir system which regulates the water level in the unit, and ensures a constant and even curtain of water flow over the stainless steel filter screen regardless of pump size. Water is pumped from the base of the unit back to the pond (or to the next stage of your filter) and the unit features a drain valve to remove solids which collect in the debris trap.

Specification Price
Pumped £495.00
Gravity £495.00
Delivery costs from £25.00 depending on Postcode
Cetus Sieve



Cetus Sieve in Use
Cetus Cutaway drawing

The stainless steel screen is 300 micron to ensure very fine solids can be removed, and owing to the curved 'ski slope' design of the screen, it cannot block.



Cetus are built in the same way, and from the same materials as the Nexus filter range, so they are remarkably strong, simple and yet very light. Dimensions 95cm high, 85cm deep and 55cm wide Delivery Cost from £29.50 - please contact us for exact delivery quote.



Cetus pond sieve shown in use (far left) and trapping solids
