We are the UKs premier supplier of ozone systems for Koi ponds and aquatic applications and are delighted to be able to offer a full range of Ozone systems which can be tailor made to meet your requirements - From Quarantine systems of 500 gallons to mega ponds of 100,000 gallons plus. Koi Water Garden Ltd now offers a complete and tailor made range of ozone equipment for Koi ponds and aquatic applications designed and manufactured in the UK . We are also distributors for the world famous Sander systems from Germany, but the really good news is that a working system can now be yours for under £400! But the good news does not stop there! We can now offer either complete systems or individual components which allow the user to tailor any system to exact requirements and ALL units can be serviced by us. We also offer an installation service if required and advice about which is the best system for you and how to install it.
KoiOzone Ozone generators
The KoiOzone range of ozone generators first introduced in 2011 are exclusive to Koi Water Garden Ltd and are manufactured to our specifications in the UK. This is the first time that ANY European manufacturer has been able to offer a full range of ozone generators which have been especially developed with Aquatics in mind to cater from the smallest, to the largest system. Our latest models, introduced this year, have been redesigned to take advantage of the latest Titanium and quartz ozone cells coupled to intelligent digital controllers. This latest technology means that the new systems are smaller, use less power, but are substantially more powerful then the units they replace. Perhaps most significantly though the new technology means that the new range cost up to 40% less than the original models. Spares and service costs are also significantly less expensive. These are robust and reliable corona discharge units that are easily serviced and maintained and are specifically designed for use in DRY ambient air or oxygen, and have rugged cell designs to resist the effects of moisture ingress. Now all models can be coupled to standalone Oxygen generators to effectively double the power output and increase efficiency. All of the units featured below can be fully automated by incorporating Redox monitor/controllers (see below). They represent fantastic value for money in terms of price/performance.
Please note that the suitability of systems for pond sizes recommended below depends on stocking densities, organic load on the pond as well as other factors, including the Ozone reactor/Protein skimmer chosen. Larger systems are available and built to order for ponds and water features up to 100,000 gallons - please email for details.
|Ichi Super||For ponds up to 2500 gallons. 60 watts power consumption. Dimensions 30 x 15 x 17cm||£495.00|
|Ni Super||For ponds up to 5500 gallons. 80 watts power consumption. Dimensions 30 x 15 x 17cm||£695.00|
|Nana Super||For ponds up to 10,000 gallons. 160 watts power consumption. Dimensions 30 x 15 x 17cm||£1095.00|
Complete KoiOzone ozone systems
For those who are a little confused, or unsure about what they need to make up a complete working ozone system for their pond, we have decided to offer complete ozone systems which incorporate everything you need to successfully install a working system . These complete systems utilise the simplest and one of the most efficient ozone mixing systems, based round the static mixer, which requires minimal plumbing and no extra pumps or power supplies. This renders the complete system very simple to install. Purchasing a complete working system is not only a convenient way of buying, in that we ensure that you get everything you need , but it will also save you money against buying the individual components. You will receive full installation instructions and comprehensive notes for guidance on the use of the equipment to ensure you get the very best from the system.
|Ichi Super complete system||For ponds up to 2500 gallons. 60 watts power consumption. Dimensions 30 x 15 x 17cm. Includes Ichi Super ozone generator, static mixer, Redox controller and probe, kynar non return valve, tubing and connectors.||£775.00|
|Ni Super complete system||For ponds up to 2500 gallons. 80 watts power consumption. Dimensions 30 x 15 x 17cm. Includes Ni Super ozone generator, static mixer, Redox controller and probe, kynar non return valve, tubing and connectors.||£985.00|
We are delighted to offer, as part of our all new UK manufactured Ozone range of equipment, the first commercially available Oxygen generators designed with aquatic applications in mind. We believe these are the first oxygen generators available anywhere in the EU commercially available from under £1000.00.
Oxygen generators work by separating the air we breath into its constituent parts using molecular sieving technology. Normal air is made up of only 20% oxygen, with the remainder being made up of Nitrogen, Carbon Dioxide and other trace gases. When used to supply Ozone generators the normal air we use as a source of oxygen can lead to reduced ozone output, and excessive maintenance requirements since the Nitrogen in air can, in the presence of moisture, form Nitric acid which corrodes the inside of the cells used to produce the Ozone gas more quickly than normal. Also as air comprises only 20% oxygen, for every 20 litres of air supply used as input, only 4 litres maximum of Oxygen is available for conversion to Ozone.
The inclusion of Oxygen generation will therefore increase Ozone output from any Ozone generator to which it is connected by a minimum of 200%, and normally much more than this, so a 1gm Ozone generator with oxygen can be much more efficient than a conventional 2gm system. Increased efficiency is delivered not only because the generators themselves can work at near 100% efficiency, but also because there is much less volume of gas being used. This means firstly that the smaller volume of gas, in this case Oxygen, is more efficiently converted to Ozone and secondly that the Ozone produced mixes much more efficiently in the Ozone reactors or skimmers employed, and there is less Ozone wastage. Ozone reactors can therefore be smaller. In addition to the increased efficiency, cell corrosion is minimised and service intervals increased, your Ozone generator will therefore perform as it should over a much longer period. Also, and particularly for larger systems, inclusion of an oxygen generator will reduce the overall cost of the system.
Our Oxygen generators can be used with virtually any make and model of Ozone generator on the market, not just our own, and we can guarantee that the efficiency of any system using Oxygen as a feed gas will be increased by a minimum of 200% and more probably by a factor of 300%.

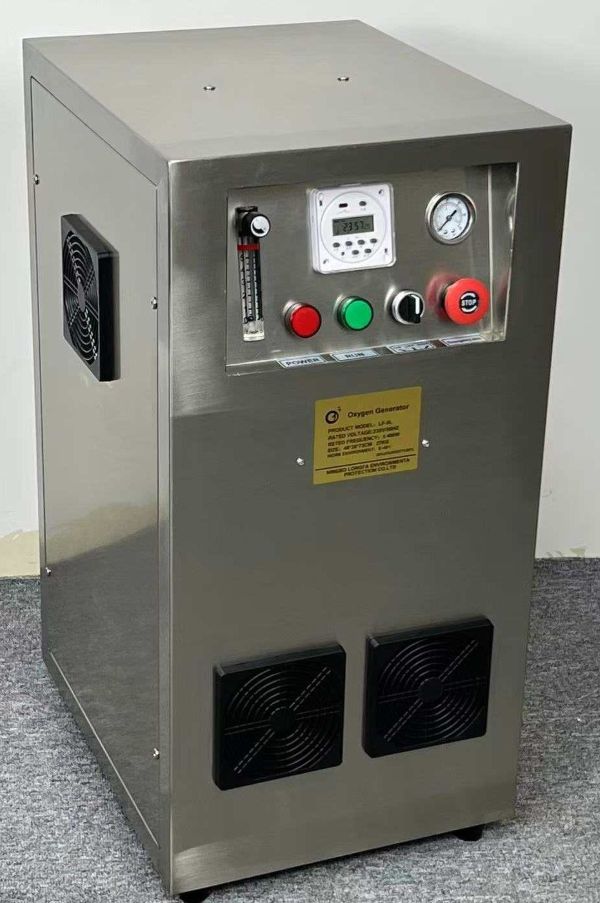

Our latest model of oxygen generator for 2013, now features an up-rated specification, delivering 25% more oxygen than previous models, so is now capable of supporting ozone generators up to 8 gm / hr output. It also features a usage timer, to highlight service intervals, a heavy duty chassis and easily accessible air filters for ease of maintenance.
|Oxy 4||4.0 litres/minute pure oxygen at 5 psi. Dimensions 52 x 36 x 36cm. Weight 26kg.||£1095.00|
Redox Monitors and Controllers and other Ozone system accessories
Redox monitors are important with larger Ozone system installations to check the Redox potential of the pond water. They are also useful to verify the readings obtained by automatic systems. Redox controllers can be added to all of our Ozone generators to produce automatic systems which will control Ozone dosing via preset Redox levels. The use of ozone requires the use of special ozone resistant materials. We stock special Teflon air line and ozone resistant ceramic air stones and other consumables, such as Redox probes and extension cables.
|Redox Monitor/Controller - includes switched power centre and Redox probe.
|Redox probe with 3m cable
|Redox extension cable 5m
|ORP calibration fluid 230mv. Enables calibration and testing of all Redox probes for accuracy
|Ozone resistant Teflon tubing 6mm. Priced per metre
|Ozone resistant Teflon tubing 8mm. Priced per metre
|Ozone resistant fine bore ceramic air stone 150mm long. 4mm and 6mm push fit connector.
|Kynar Ozone resistant non return valve with Viton diaphragm. Fitted into the ozone feed line, prevents any possibility of water syphoning back into the generator. For 4-6mm tubing
|Air flow monitor and controller 0 - 200 lph - not suitable for use with ozone gas.||£39.95|
Above: Redox Controller
Above: Kynar Non Return Valve
Above: Air Flow Controller
Digital pH, temperature and ORP monitor
This super combination hand held tester is effectively three instruments in one. Provides accurate temperature measurements, pH measurements and ORP measurements all at the press of a button. Supplied with temperature probe, pH probe and pH calibration fluid in a soft carrying case and a hard transport case. ORP probe not supplied. Batteries and full instructions included. pH calibration facility. Brilliant value for money.
Digital Multi Meter
ORP, pH and Temperature - parameters measured by one portable instrument.
|Digital ORP, pH and Temperature meter||£129.50|
To get the best from any ozone system, the ozone produced must be mixed in the water flow efficiently. Inefficient mixing can lead to excessive ozone wastage and an unwanted smell of ozone as well as a lower Redox level being attained. Efficient mixing means that you will be able to use a smaller ozone generator, and therefore money spent on a good installation or ozone reactor system will reduce money spent on the generator! Mixing can be achieved in several ways - small ozone generators can simply be attached to special ceramic air stone which are placed in a spare filter chamber or vessel placed at the end of the filter , so that ozone is able to treat the water passing through the filter system before it returns to the pond. Air stones used in this way must be ozone resistant and fine bore ceramic material so that the bubbles produced are very fine - this will give an efficient mix and reduce ozone wastage. A minimum chamber depth of at least 24" is to be recommended if this method of mixing is chosen.
Ozone venturi injectors are now available so that ozone can be drawn into a suitable return pipe and mixed with the returning flow on route to the pond. Venturi injection is an ideal method of ozone mixing for bead and all pressure filter installations, as the pumps required to run these filter systems are already powerful and therefore capable of running venturi mixing systems without further system modifications being required. Venturis are also relatively cheap to purchase and easy to install although because of the pump power required to use them, can be more expensive to run than other types of ozone reactors.
Special protein skimmers or ozone reactors are also available which have been specially designed for use with ozone - these have the added advantage of skimming off unwanted proteins in the water as well as acting as ozone mixing vessels. Protein skimmers are widely used in commercial aquaculture and are available in sizes to suit any ozone installation. They are easy to install and economical to run, as again they only require low power pumps to provide good mixing. However, these devices are much more expensive to purchase than ozone reactors and the process of generating the protein skimming will compromise the ozone mixing to a degree so they generally need to be bigger than the equivalent ozone reactor to produce the same result - too much air passing through a skimmer will reduce mixing efficiency.
Below list a range of ozone reactors, offering all the methods of achieving good ozone mix outlined here. .
Ozone venturi injectors work by creating a negative pressure in the integrated air line connection and therefore ozone can be drawn into a suitable return pipe and mixed with the returning flow on route to the pond. Venturi injection is an ideal method of ozone mixing for bead and all pressure filter installations, as the pumps required to run these filter systems are already powerful and therefore capable of running venturi mixing systems without further system modifications being required. Features built in non return valve to avoid reverse gas flow. Venturis can be installed in by-pass piping and so run using an existing filter pump, but can also be set up to used with a dedicated pump and pond return..
|KWG 25100 injector. 3/4 inch male threaded connection, supplied with 3/4" imperial sockets and 6mm line connection nipple. 8mm compression fittings can also be supplied for use with Teflon pipe. Gas flow rate 3-10 lpm. Recommended for all ozone generators powered by oxygen. Dedicated pumps should be medium to high pressure to ensure adequate water flow.
|Single Venturi assembly complete for 1.5" imperial pressure pipe. Min length 50cm, min width 30cm. Fitted with model 25100 venturi with compression fitting for 8mm Teflon, 1.5" control ball valve, 2 x 3/4" ball valves on side branch and 3/4" sight glass for easy set up.
|Single Venturi assembly complete for 2" imperial pressure pipe. Min length 50cm, min width 30cm. Fitted with model 25100 venturi with compression fitting for 8mm Teflon, 2" control ball valve, 2 x 3/4" ball valves on side branch and 3/4" sight glass for easy set up.
|Single Venturi assembly complete for 50mm (1.5") pressure pipe. length 50cm. 8mm ozone inlet, 1.5" control ball valve, with pressure gauge assembly for easy set up.
Above: Venturi Injector assembly with pressure gauge.
Above: Venturi manifold assembly
Static ozone mixer

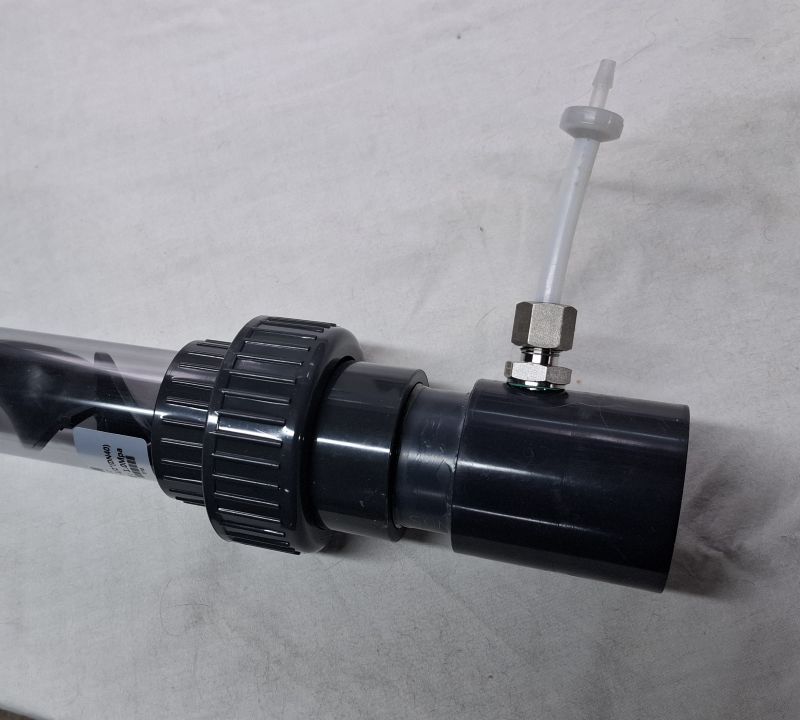

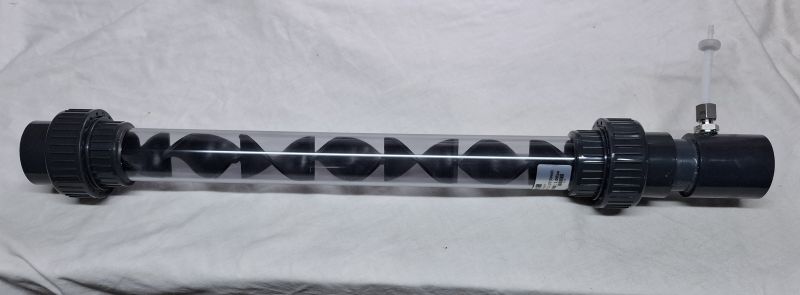

The mixer comprises a clear PVC mixer tube which contains stainless steel shear blades designed to agitate and disrupt the water flow without creating back pressure which gives excellent ozone mixing characteristics. May be used with generators up to 4gm output. For best results install horizontally at or above water level and allow 1m of pipe work per gm ozone AFTER the mixing tube and before the water returns to the pond. .
Static mixer 3" dia pipe x 70cm long, supplied with 8mm ozone resistant gas fitting and Kynar non return valve
Aquaforte Pressurised Ozone Reactors
At last we are able to offer top quality pressurised ozone reactors - these units can be used on pretty much any type of system, with gravity or pressurised filters, are relatively compact and very well made. They employ clever technology to introduce ozone into a pressurised reactor and use countercurrent mixing technology combined with a non return exhaust system to allow residual gas to vent to waste without water loss. Specify the model 200 for ozone systems up to 2gm / hour and specify the model 400 for ozone generators from 2gm to 4gm/ hour output.
Above: schematic of model 200 ozone reactor in use.
|Model 200 reactor||£455.00|
|Model 400 reactor||£795.00|
Model 200 Ozone reactor - 115cm high, 16cm diameter, 40mm water inlet and outlet, 6mm ozone inlet, max recommended flow 1100 gph (5,500 lph). Complete with venturi injection system, non return valve and gas exhaust
Model 400 Ozone reactor - 115cm high, 25cm diameter, 63mm water inlet and outlet, 6mm ozone inlet, max recommended flow 2200 gph, (10,000 lph). Complete with venturi injection system, ceramic air diffuser, non return valve and gas exhaust.
Above: model 400 ozone reactor in use on one of our stock ponds.
Sander Protein Skimmers
There are a number of different protein skimmers which are manufactured especially for use with ozone gas. Undoubtedly, the best of these are made by Erwin Sander in Germany. For most Koi pond applications, the Sander Freshskim 200 or Freshskim 300 are the best skimmers to use. They are very efficient devices, and able to not only mix ozone efficiently, but are true protein skimmers and will remove ultra fine solids and dissolved proteins from the water very effectively too.

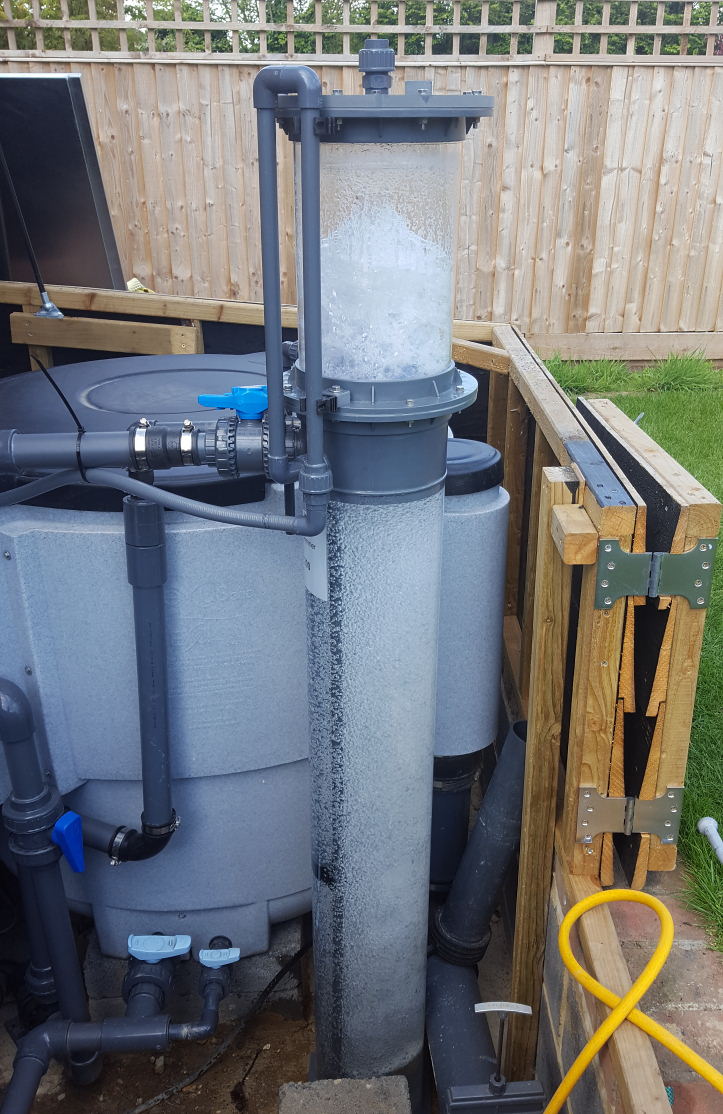

The pictures (below right) show a Sander Freshskim model 300 protein skimmer installed on our main show pond. This has been coupled to one of our own Ni Oxy Ozone systems and the results in terms of water quality are absolutely stunning. You can see from the photos the 'blue' tinge to the water in the skimmer and the mass of bubbles produced in fresh water. The skimmer is powered by an Oase Aquamax 8000 pump for water supply and a Secoh 80 air pump to provide the necessary volume of air required. The picture bottom left shows the results, the water quality (not just clarity) is superb. The Tancho in the centre of the picture is swimming 6ft down!.
Sander freshskim models are specifically designed for use with freshwater applications
The Tancho in the above picture is swimming almost six feet down!
|Freshskim model 200||£1495.00|
|Freshskim model 300||£2895.00|
Freshskim 200 - 180cm high, 8mm ozone inlet, max recommended flow 700 gph (3,200 lph), recommended for ponds to 6,000 gallons.
Freshskim 300 - 210cm high, 8mm ozone inlet, max recommended flow 1760 gph, (8,000 lph), recommended for ponds to 10,000 gallons
