Koi Pond Combination Filters

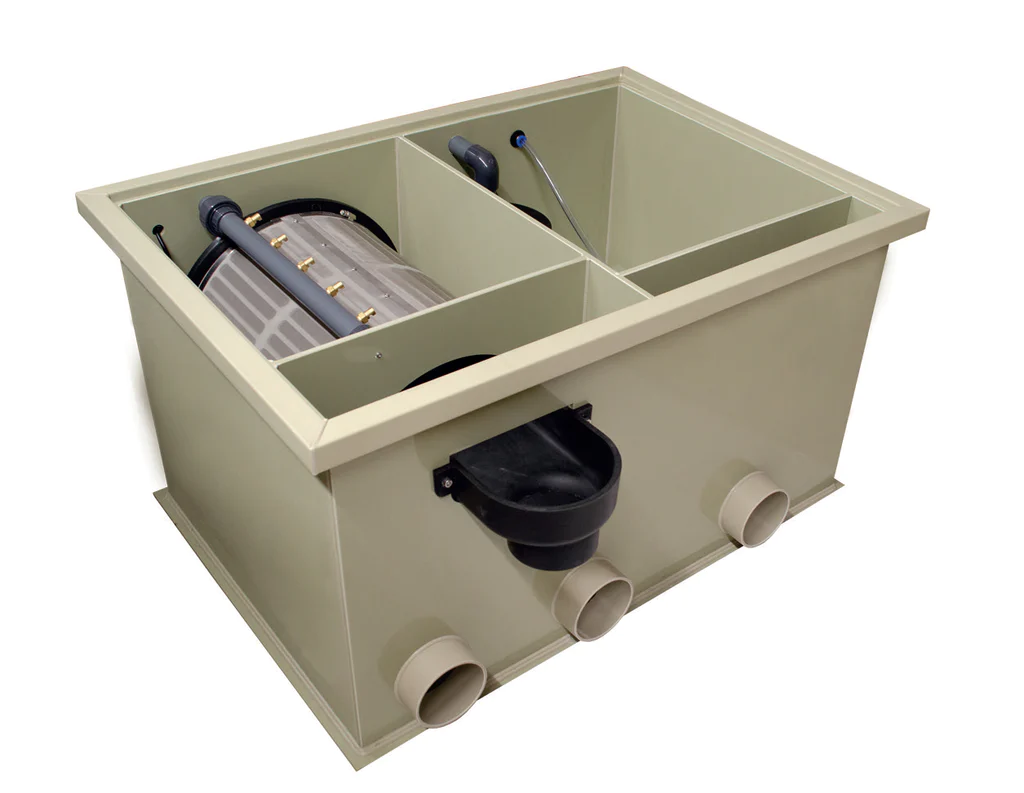

Filtreau Combi 2





Available as two variants, one without the high pressure wash pump (select one yourself) or with its own on board wash pump ready to go. A further option is to order for moving bed bio media, such as Helix, or for a Japanese matting variant - again your choice - AND one version can easiliy be converted to the other, should you choose to do so at a later stage. All versions come complete with an on board submersible UV

.

The Filtreau Combi 2 Features:-



- Ultra efficient mechanical filtration, combined with excellent efficient biological filtration, all in one very compact unit.

· Maximum Flow rate of 3300 gallons (15,000 litres) per hour

· 2 x 110mm inlets and 1 x 110mm outlet

· Fully automatic controller module

· 70 micron screen .

· Optional on board high pressure cleaning pump

· Direct drive

· 140 litre (max capacity)Bio chamber.

· Air curtain for bio section supplied

· Dimensions— External; 710mm x 1010mm x 550mm ( LxWxH )

· Designed for ponds up to 4400 gallons (20,000 litres)

· Supplied complete with submersible UV.

· Available in two version for moving bed or Japanese Matting media.



Size	Price
Filtreau Combi 2 MB	£1795.00
Filtreau Combi 2 MB Complete	£2195.00
Filtreau Combi 2 JM	£1795.00
Filtreau Combi 2 JM Complete	£2195.00

Choose from above for Moving Bed Bio (MB). or Japanese matting Bio (JM) version. Complete versions have on board high pressure cleaning pumps as standard







Filtreau Combi 2

One of the smallest Combination filters yet - with great specification and performance at a very affordable price.

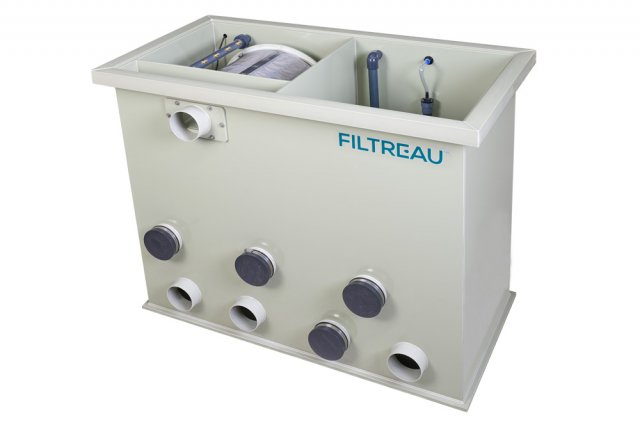

Filtreau Combi Next





One of the best value for money high spec Combination filters yet produced, with a hiuge bio chamber and high capacity drum, all packed into a very compact unit. Available as two variants, one without the high pressure wash pump , or with its own on board wash pump ready to go. Both versions come complete with an Amalgam on board submersible UV

.

The Filtreau Combi Next Features:-



- Ultra efficient mechanical filtration, combined with excellent efficient biological filtration, , catering for ponds up to 10,000 gallons, all in one very compact unit.

· Maximum Flow rate of 6600 gallons (30,000 litres) per hour

· 3 x 110mm inlets and 2 x 110mm outlet

· Fully automatic controller module

· 70 micron screen .

· Optional on board high pressure cleaning pump

· Direct drive

· 340 litre (max capacity)Bio chamber.

· Air curtain for bio section supplied

· Dimensions— External; 930mm x 1040mm x 1020mm ( LxWxH )

· Designed for ponds up to 9900 gallons (45,000 litres)

· Supplied complete with submersible UV.

· Available in two versions for pumped or gravity filter systems.



Size	Price
Filtreau Combi Next Gravity	£2225.00
Filtreau Combi Next Pumped	£2310.00
Filtreau Combi Next C	£2499.00

Choose from above for Pumped or Gravity Filter systems. The Combi Next C comes complete with its own on-board wash pump for Gravity Filter systems

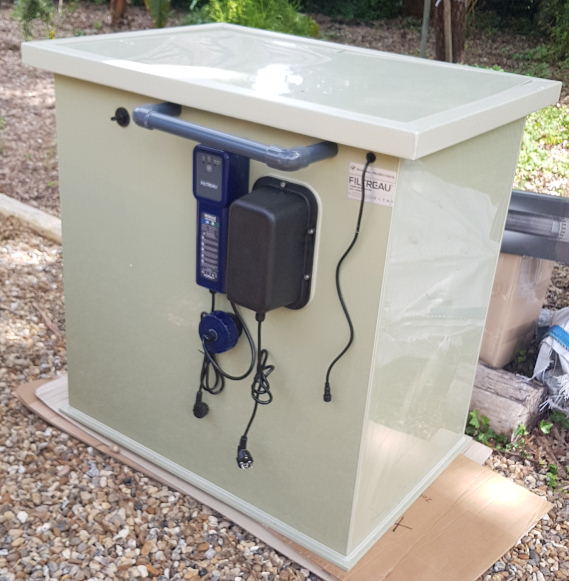

Filtreau Combi Next

One of the best value for money Combination filters yet - with huge performance and suitable for very large ponds at a very affordable price.

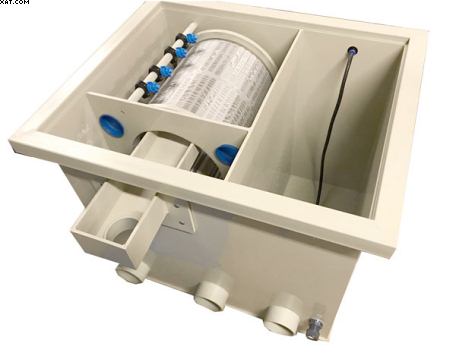

Superdrum Combi Bio 30



The Superdrum Combi Bio 30 Features:-



The Superdrum Combi Bio 30 offers ultra efficient mechanical filtration, combined with excellent efficient biological filtration, all in one compact unit.

Built to a very high standard, the filter features the following;

· Flow rate of 4400 gallons (20,000 litres) per hour

· 3 x 110mm inlets and 1 x 110mm outlet

· Fully automatic controller module

· 60 micron screen with Blanketweed and debris trap on drum.

· Lid with safety cut off switch

· 5.5 bar on board cleaning pump

· Ultra reliable drive motor

· Direct drive

· Filter can still be run if the drive motor fails

· 110 litre (max capacity)Bio chamber.

· Air curtain for bio section supplied

· Full 2 year warranty ( exc. screen)

· Dimensions— External; 990mm x 930mm x 770mm ( LxWxH )

· Drum Size — 400mm (D) x 380 (W)

· Designed for ponds up to 6500 gallons (30,000 litres)

· Supplied complete with wash pump.



Size	Price
Superdrum Combi Bio 30	£2950.00





Superdrum Combi Bio 30

Compact size but with a super performance, the Superdrum Combi Bio 30 filter will handle flows of up to 4400 gallons per hr (20 cu m per hr)





Oase Proficlear Premium Compact L EGC



The Oase Combination filter type 1 is a marriage of 1 x Profidrum and a Moving bed biofilter module complete with 60 litres of helix media.



 Specification. Oase Proficlear Premium Compact-L EGC



 Width in mm 891

 length in mm 1370

 Height in mm 815

 Power consumption in Watts 5

 Power consumption cleaning in Watts 1050

 Cable length in m 5.00 + 5.00

 Net weight in kg 102kg

 Guarantee 2 + 1 years

 Control unit Microcontroller

 Temperature indicator Yes

 Coarse debris to 60µM

 Number of nozzles 4

 Cleaning flow rate 2.5 l/min

 Waste pump Ebara 6 bar

 Automatic purging by:   sensor, time interval, manual

 Drum diameter in mm 516

 Basket width in mm 370

 Number of sieve elements (unit) 8

 Filter intake surface in cm² 4200

 Material GRP thermoset/stainless steel

 Biological filter surface 57.3 sq. m

 Number of inlets 3 (Gravity), 2 (Pumped)

 Number of outlets 2

 Connections, inlet DN110 (gravity) 50mm (Pumped)

 Connections, outlet DN150 (gravity) 110mm (Pumped)

 Connections, sludge discharge N 75, DN 110

 Max Flow rate, 25,000 lph (Gravity) 20,000 lph (Pumped)

 Installation height over water level in cm 13 (Gravity)

 Installation height over water level in cm 37.5 (Pumped)

 Possible water-level difference in cm 10

 60 litres helix bio media







Size	Price
Oase Compact L EGC combination filter Pumped	£4199.00
Oase Compact L EGC combination filter Gravity	£4199.00





Oase Compact L EGC combination filter

Compact size but with huge performance, the Oase Combination filter EGC L will handle flows of up to 5500 gallons per hr (25 cu m per hr) and is complete with 60 litres of Helix bio media.

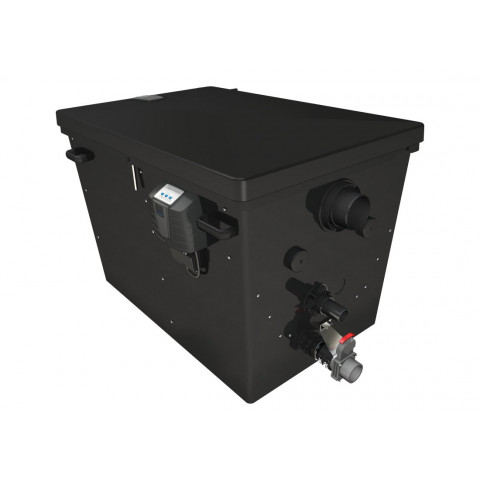

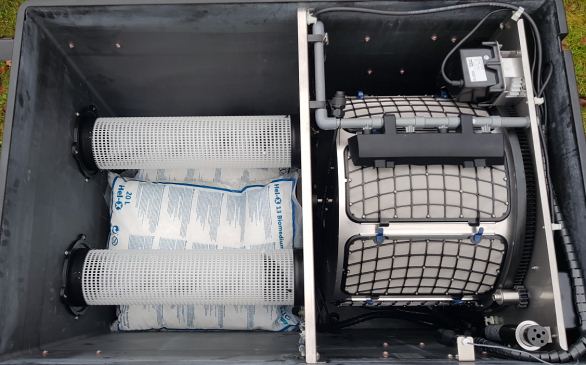

Above: Oase compact L EGC combination filter





Oase Premium DF-L Moving Bed Module





The Oase Premium DF-L moving bed modules are designed to be fitted after the Oase Profi Drum Premium DF-L filter, but can also be used with many types of suitable drum or pre-filter. They are designed also to be daisy chained together so that one, two or more modules can be fitted together in-line to complete a filter system to cope with all sizes of ponds The module offers ultra efficient biological filtration, as the modules are supplied with 50 litres of Helix 15 bio media and are comfigured wth large airstones already in place and filter grids so that the units can be installed very quickly. They feature 6" (150mm) inlet and outlets complete with rubber fittings ready for connection and by using rubber reducers the final outlets can be simply be reduced to 2" or 1.5" ready for connection to filter pumps. Dimensions 83cm x 60cm wide x 82cm high, weight 44kg





Size	Price
Oase Premium DF-L Moving Bed module	£924.99.00

Oase Premium DF-L Moving Bed module



Oase Premium XL Moving Bed Module





The Oase Premium XL moving bed modules are designed to be fitted after the Oase Profi Drum Premium XL filter, but can also be used with many types of suitable drum or pre-filter. They are designed also to be daisy chained together so that one, two or more modules can be fitted together in-line to complete a filter system to cope with all sizes of ponds The module offers ultra efficient biological filtration, as the modules are supplied with 100 litres of Helix 15 bio media and are comfigured wth large airstones already in place and filter grids so that the units can be installed very quickly. They feature 6" (150mm) inlet and outlets complete with rubber fittings ready for connection and by using rubber reducers the final outlets can be simply be reduced to 2" or 1.5" ready for connection to filter pumps. Dimensions 133cm x 87.5cm wide x 82cm high, weight 101kg





Size	Price
Oase Moving Bed module	£1749.00

Oase Premium XL Moving Bed module

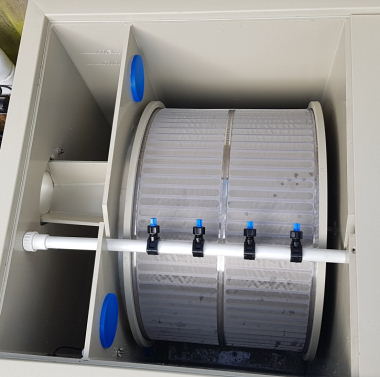

Above: Drum chamber for Combi Bio range.

Above: Internal wash pump and air diffuser for Combi Bio range.

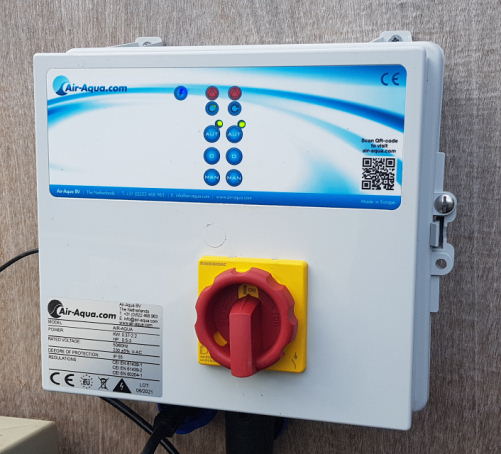

Above: Controller for Combi Bio range.

Combi Bio 50



The Combi Bio 50 Features:-



The Combi Bio 50 offers ultra efficient mechanical filtration, combined with super efficient biological filtration, all in one compact unit.

· Built to a very high standard, the filter features the following;

· Flow rate of 6600 gallons per hour

· 3 x 110mm inlets and 2 x 110mm outlet

· Dry run protection

· Fully automatic control panel.

· 60 micron screen.

· 5.5 bar internal cleaning pump

· Direct drive

· Filter can still be run if the motor fails

· 320 litres capacity of bio media (not supplied)

· Full 2 year warranty ( exc. screen)

· Dimensions— External ; 1940mm x 685mm x 947mm ( LxWxH )

· Drum Size—420mm (D) x 415 (W)

· Max water level height - 825mm





Size	Price
Combi Bio 50	£4145.00

Combi Bio 50

Compact size but with huge performance, the Combi Bio 50 filter will handle flows of up to 6600 gallons per hr (30 cu m per hr).



Combi Bio 100



The Combi Bio 100 offers ultra efficient mechanical filtration, combined with super efficient biological filtration, all in one compact unit.

· Built to a very high standard, the filter features the following;

· Flow rate of 11000 gallons per hour

· 4 x 110mm inlets and 2 x 110mm outlet

· Dry run protection

· Fully automatic control panel.

· 60 micron screen with Blanketweed and debris trap on drum.

· 5.5 bar internal cleaning pump

· Filter can still be run if the motor fails

· 420 capacity bio chamber (media not supplied)

· Full 2 year warranty ( exc. screen)

· Dimensions— External ; 1940mm x 836mm x 973mm ( LxWxH )

· Drum Size—650mm (D) x 415 (W)

· Max water level height - 805mm

· Installation height is 14.5cm below water level of the pond



Size	Price
Combi Bio 100	£5145.00

Combi Bio 100

Still compact size but with even more capability, the Combi Bio 100 filter will handle flows of up to 11000 gallons per hr (50 cu m per hr).

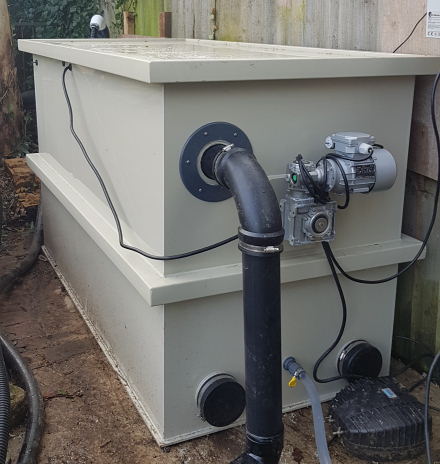

Above: Combio Bio 100 insalled as a pumped system

Combi Bio 200



The Combi Bio 200 offers ultra efficient mechanical filtration, combined with super efficient biological filtration, all in one compact unit.

· Built to a very high standard, the filter features the following;

· Flow rate of 20000 gallons per hour

· 8 x 110mm inlets and 4 x 110mm outlet

· Dry run protection

· Fully automatic control panel.

· 60 micron screen with Blanketweed and debris trap on drum.

· 5.5 bar internal cleaning pump

· Filter can still be run if the motor fails

· 420 litre max capacity bio chamber (media not supplied)

· Full 2 year warranty ( exc. screen)

· Dimensions— External ; 2380mm x 836mm x 973mm ( LxWxH )

· Drum Size—650mm (D) x 800 (W)

· Max water level height - 805mm

· Installation height is 14cm below water level of the pond



Size	Price
Combi Bio 200	£6895.00

Combi Bio 200

A much larger filter but with massive performance, the Combi Bio 200 filter will handle flows of up to 20000 gallons per hr (100 cu m per hr).



Automatic Water Top Float switch





This super but simple auto-top up float switch can be fitted even in the tightest of spaces, and was designed originally for use in the Oase range of drum filters. This neat and adjustable float valve, easily located in a filter tank or similar, acts as a simple switch to activate a valve which turns on and off the water supply as required. The float can be adjusted from a fully horizontal to fully vertical position giving a huge amount of flexiblity to the installation point.







Product	Price
Float Switch	£39.95
